- Residential
Analog / Multi-Jet / Wet Dial / Water Meter
본문
-

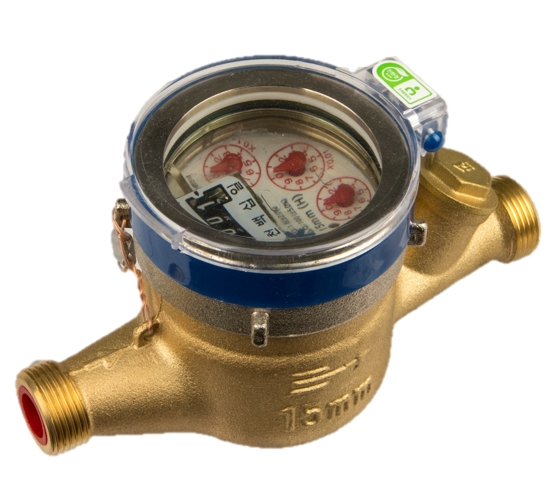

Water Meter, Wet Dial, Normal -

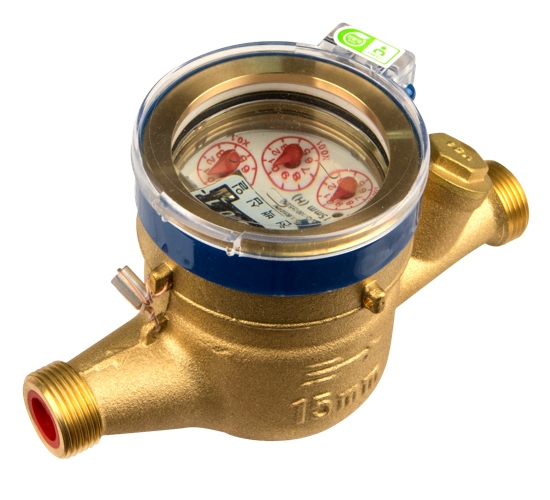

Water Meter, Wet Dial, Back Flow Prevention -

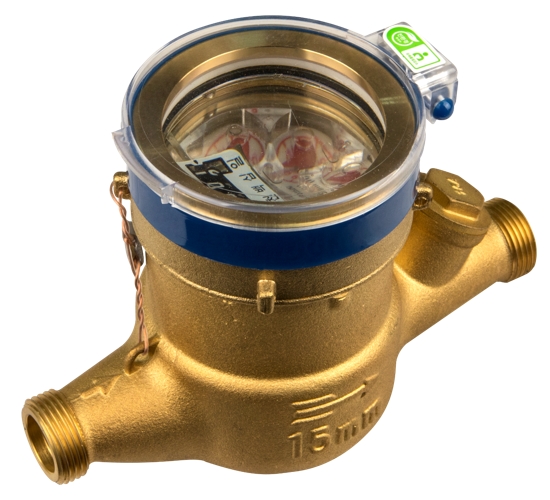

Water Meter, Wet Dial, Normal, Nickel Plating -

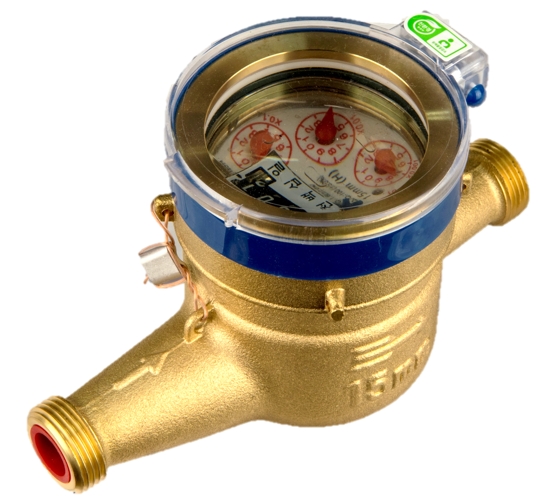

Water Meter, Wet Dial, Back Flow Prevention, Nickel Plating -

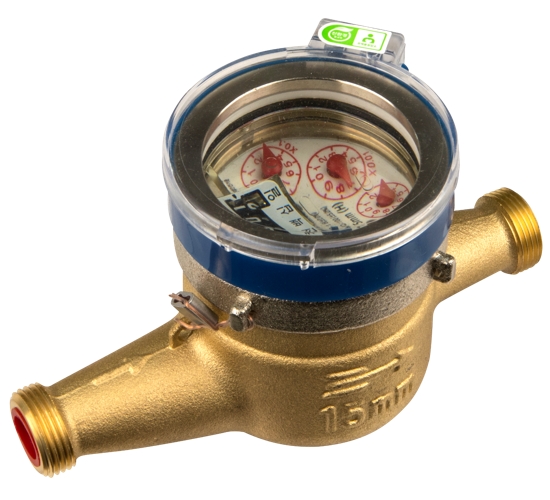

Water Meter, Wet Dial, Back Flow & Freezing Prevention
Specification
Product Specification
| DN (mm) |
Length (mm) |
Height (mm) |
Width (mm) |
Thread Meter (inch) |
Thread Connector (inch) |
|---|---|---|---|---|---|
| 15 | 165 | 110 | 88 | PF 3/4 | PT 1/2 |
| 20 | 190 | 103 | 97 | PF 1 | PT 3/4 |
| 25 | 225 | 108 | 97 | PF 1 1/4 | PT 1 |
| 32 | 230 | 112 | 97 | PF 1 1/2 | PT 1 1/4 |
| 40 | 245 | 126 | 117 | PF 2 | PT 1 1/2 |
| 50 | 305 | 156 | 134 | PF 2 1/2 | PT 2 |
