- Residential
Digital / Multi-Jet / Water Meter
본문
-

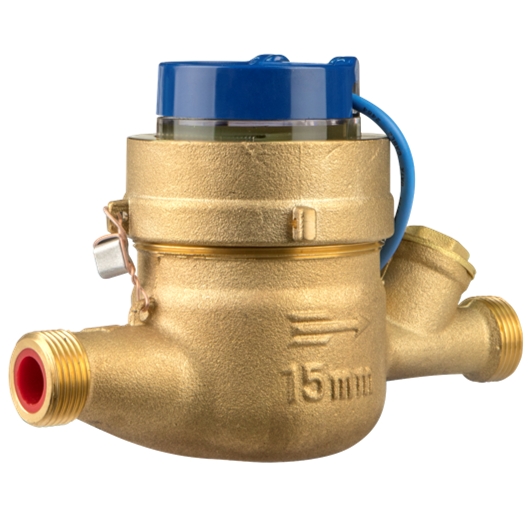

Water Meter, Digital, Normal -

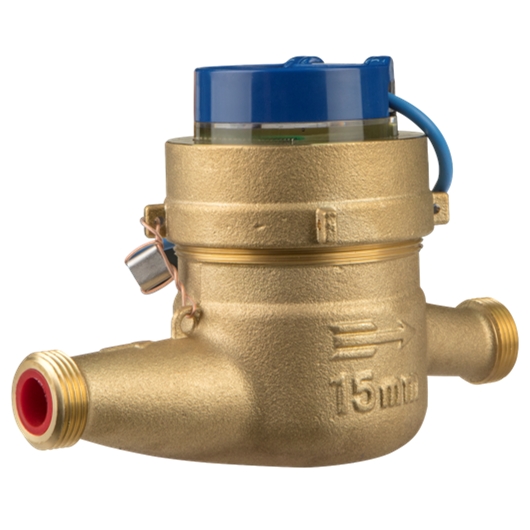

Water Meter, Digital, Back Flow Prevention -

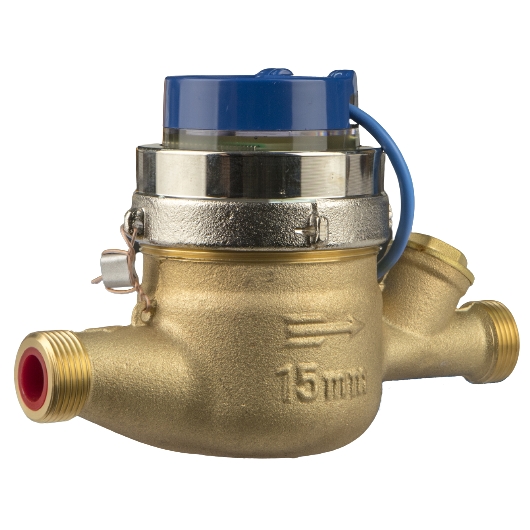

Water Meter, Digital, Normal, Nickel Plating -

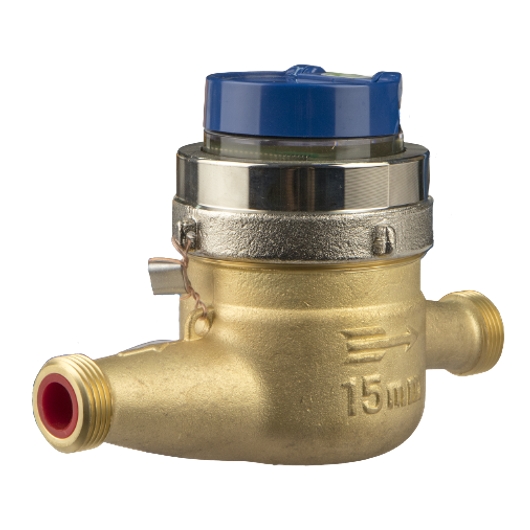

Water Meter, Digital, Back Flow Prevention, Nickel Plating
Specification
Product Specification
| DN (mm) |
Length (mm) |
Height (mm) |
Width (mm) |
Thread Meter (inch) |
Thread Connector (inch) |
|---|---|---|---|---|---|
| 15 | 165 | 112 | 88 | PF 3/4 | PT 1/2 |
| 20 | 190 | 121 | 98 | PF 1 | PT 3/4 |
| 25 | 225 | 125 | 98 | PF 1 1/4 | PT 1 |
| 32 | 230 | 127 | 98 | PF 1 1/2 | PT 1 1/4 |
| 40 | 245 | 137 | 117 | PF 2 | PT 1 1/2 |
| 50 | 305 | 160 | 138 | PF 2 1/2 | PT 2 |
