- Residential
Analog / Multi-Jet / Dry Dial / Hot Water Meter
본문
-

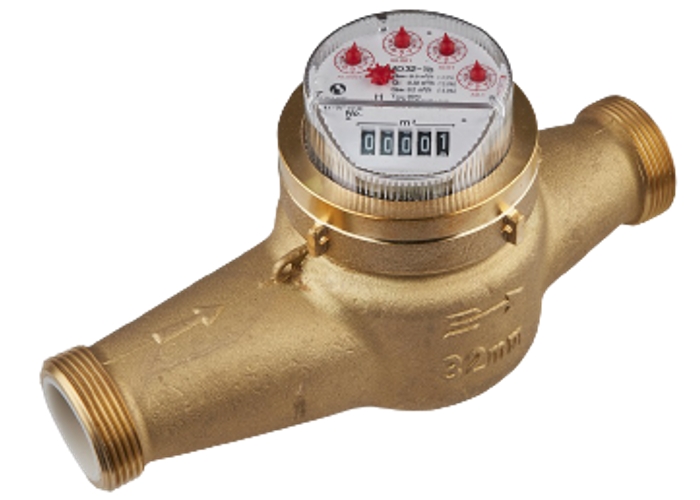

Hot Water Meter, Multi-Jet, Normal, 32mm -

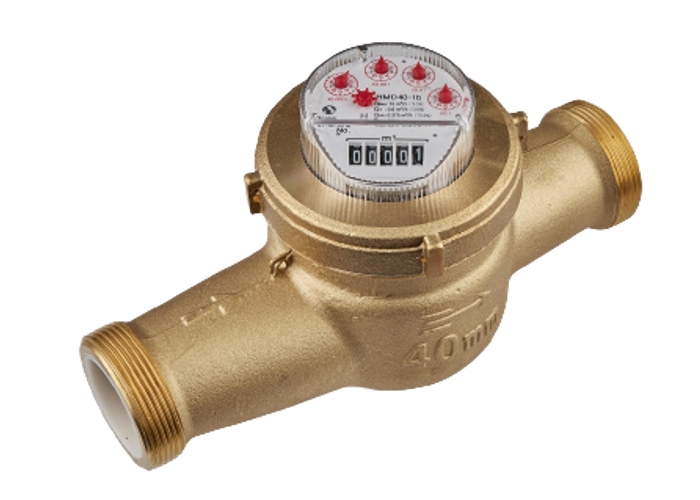

Hot Water Meter, Multi-Jet, Normal, 40mm -

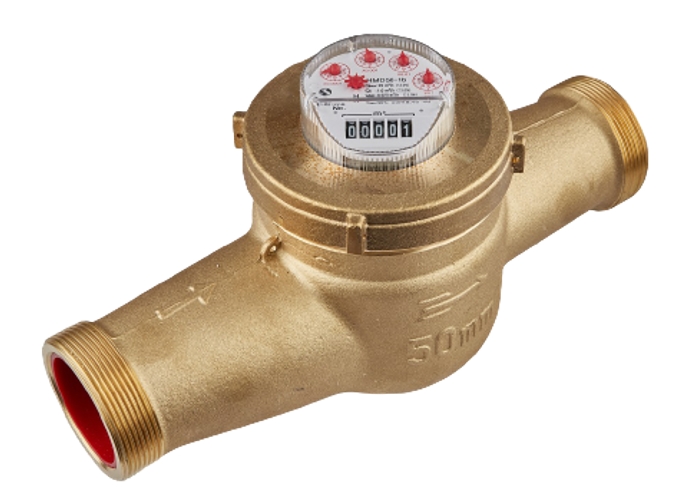

Hot Water Meter, Multi-Jet, Normal, 50mm -

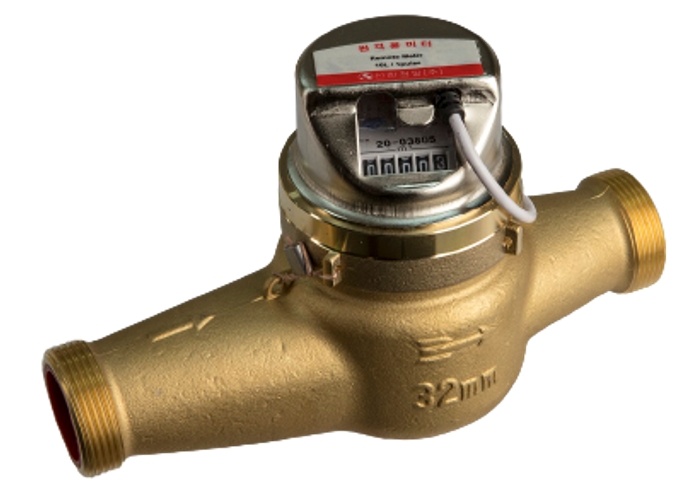

Hot Water Meter, Multi-Jet, Remote, 32mm -

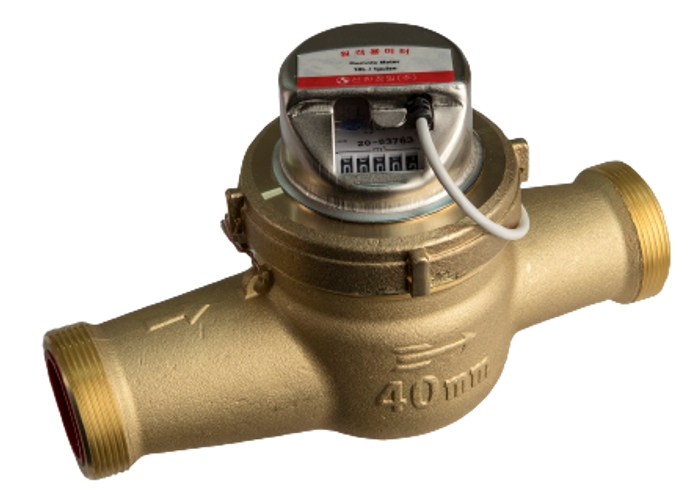

Hot Water Meter, Multi-Jet, Remote, 40mm -

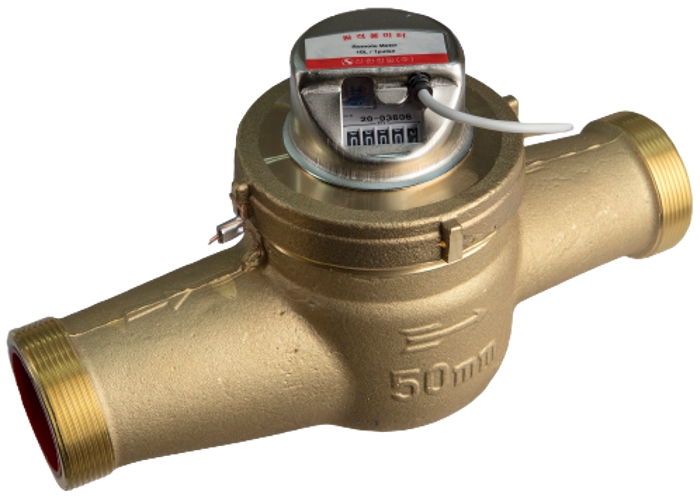

Hot Water Meter, Multi-Jet, Remote, 50mm
Specification
Product Specification
| DN (mm) |
Length (mm) |
Height (mm) |
Width (mm) |
Thread Meter (inch) |
Thread Connector (inch) |
|---|---|---|---|---|---|
| 32 | 230 | 131 | 97 | PF 1 1/2 | PT 1 1/4 |
| 40 | 245 | 146 | 117 | PF 2 | PT 1 1/2 |
| 50 | 305 | 167 | 134 | PF 2 1/2 | PT 2 |
